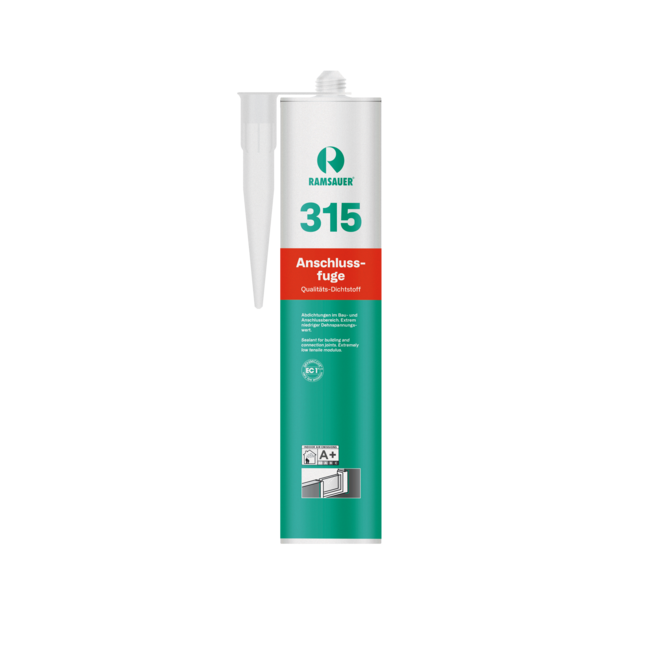

Produktbild 315 Anschlussfuge - Ramsauer Dichtstoffe
Products Sealants

315 Anschlussfuge

Neutral
See product information
€ {{ priceInfo.totalPriceFormatted }}/{{ priceInfo.unitInfo.abbreviation }}  â‚¬ {{ priceInfo.singleUnitOriginalPriceFormatted }}/{{ priceInfo.unitInfo.abbreviation }} 11.18/STK (€ {{ priceInfo.singleUnitPriceFormatted }}11.18/{{ priceInfo.singleUnitInfo.abbreviation }} â‚¬ {{ priceInfo.singleUnitOriginalPriceFormatted }}/{{ priceInfo.singleUnitInfo.abbreviation }}) Incl. VAT ()
Select colour
Please select a colour
Select size
Please select a size
€ {{ priceInfo.totalPriceFormatted }}/{{ priceInfo.unitInfo.abbreviation }}  â‚¬ {{ priceInfo.singleUnitOriginalPriceFormatted }}/{{ priceInfo.unitInfo.abbreviation }} 11.18/STK (€ {{ priceInfo.singleUnitPriceFormatted }}11.18/{{ priceInfo.singleUnitInfo.abbreviation }} â‚¬ {{ priceInfo.singleUnitOriginalPriceFormatted }}/{{ priceInfo.singleUnitInfo.abbreviation }}) Incl. VAT
{{ selectedArticle.itemNo }}: {{ selectedArticle.description }}
An error occurred when the item was being added to your basket.
For delivery information, select an item. Delivered in {{ currentAvailability.delivery.min }}-{{ currentAvailability.delivery.max }} working days.
To see the current stock level, select an item. In stock. Low stock. You should order soon. Product not in stock.
Added to basket.
Go to basket ({{ cart?.summary?.itemCount }})
Discover more extras.
Produktbild 1050 Rundprofil geschlossenzellig - Bänder - Ramsauer
1050 Rundprofil geschlossenzellig
4 sizes
Produktbild 506 Glättmittel Spezial - Ramsauer
506 Glättmittel Spezial
3 sizes
Produktbild Handdruckpresse RH7 - Ramsauer
Handdruckpresse RH7

Product information and downloads

The flexible silicone for special requirements

Thanks to 315 Anschlussfuge, gaps in door or window elements’ perimeter joints are nothing to be afraid of. On account of its flexible properties and high elongation at break (250%), the silicone system is perfect for sealing windows and doors outdoors. Even wind and weather cannot throw the material out of joint. Due to its very low yield stress, 315 Anschlussfuge is the ideal choice for sealing perimeter joints on metal window sills. In addition, the material can also withstand heavy stress and strain, meaning it can also be used for expansion and butt joints in pre-fabricated concrete structures.

All properties Standards and technical data Downloads
Extra UV-resistant and weather-proof
Low emissions during the curing phase
Strong motion absorption allows for wide variety of applications
Does not cause corrosion on metals

Properties

  • Paint-compatible
  • Maximum movement accommodation: 25%
  • UV-resistant
  • Elastic
  • Odourless
  • Vapour-permeable
  • Resistant to weather and ageing

Standards

  • LEED approved
  • DIN EN ISO 11600
  • DIN 18540
  • German Sustainable Building Council (DGNB)
  • ÖNORM B 5320

Technical data

Colours
white, grey, transparent
Storage life
9 months in a cool and dry place
Shore hardness
~ 12 (EN ISO 868)
Tensile modulus at 100%
0,10 N/mm² (EN ISO 8339)
Skin over time
~ 35 min. (23°C/50 % relative humidity)
Curing time
~2 mm/24 hours (at +23°C / 50 % relative humidity)
Temperature resistance
- 40°C bis + 150°C
Movement capability
25%
Elongation at break
~ 250% (EN ISO 8339)
Packaging
310 ml cartridges, 400 ml foil bags
Processing temperature (substrate, environment)
+5°C to + 35°C
Shrinkage
~ 4.7% (EN ISO 10563)
Density
~ 1.01 (EN ISO 1183-1)
Basis
Neutrally cross-linking alkoxy system
Tear strength
~ 3.04 N/mm (ISO 34-1)

Downloads

Data sheets

315 Anschlussfuge-TDS-EN.pdf
PDF, 223.17 kb

Safety data sheets

315 Anschlussfuge-SDS-EN.pdf
PDF, 190.03 kb

Certificates

315 Anschlussfuge, Emicode EC1 Plus EN.pdf
PDF, 377.45 kb

Applications

Main applications

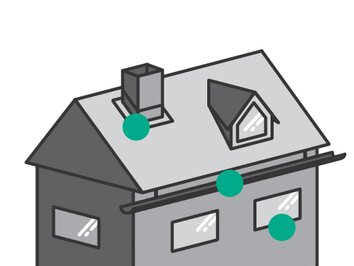

Illustration Haus mit Schornstein, Dachfenster und Regenrinne
Seals on roofs and structural facades
Tested and weather-proof professional-grade materials guarantee long-lasting joints under heavy stress and strain.

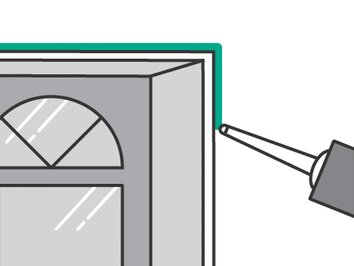

Sealing windows and doors on the outside
Long-lasting perimeter joints in outdoor areas require resilient and elastic sealants.

Other applications

Sealing joints in steel and aluminium
Non-corrosive and weather-proof sealants provide lasting attractive results.
